GitLab Installation Tutorial Part 2

GitLab Installation Tutorial (Part2)

10 Apr 2016 12 min read

Step 3 – Plesk Integration

After GitLab is successfully configured, there is Plesk integration next.

Create /etc/nginx/conf.d/gitlab.conf file with the following content

For GitLab version 7:

upstream gitlab {
server unix:/var/opt/gitlab/gitlab-rails/sockets/gitlab.socket fail_timeout=0;

For GitLab 8.0.x/8.1.x , that performs gitlab-git-http-server:

upstream gitlab {
server unix:/var/opt/gitlab/gitlab-rails/sockets/gitlab.socket fail_timeout=0;

For GitLab 8.2.x, that present gitlab-workhorse:

upstream gitlab {
server unix:/var/opt/gitlab/gitlab-rails/sockets/gitlab.socket fail_timeout=0;

When there are a lot of data, it may occur 413 error, so to avoid it just be sure that the http section of /etc/sw-cp-server/config file have the following line:

client_max_body_size 2048m;

Reload nginx with:

/etc/init.d/nginx reload

or restart the service with:

service nginx restart

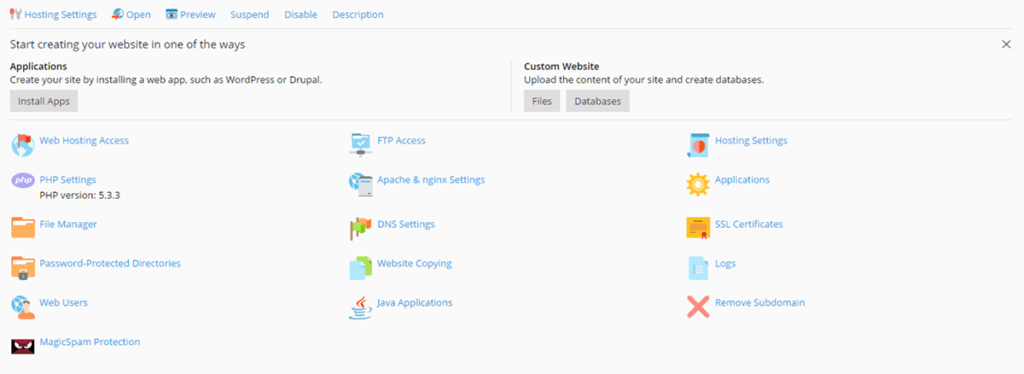

At this point create a new domain or subdomain (like gitlab.wdscode.guru) in Plesk, and in its configuration click on “Apache & nginx Settings” (“Web server settings” on Plesk 12.0) for the chosen domain.

Install_GitLab_with_Plesk_12_on_CentOS_6_-_Nullalo_-_2016-03-30_11.20-1024x374

Uncheck all the options in the “nginx settings” section and add the following text in the “Additional nginx directives” text area for GitLab 7:

location /uploads/ {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off; proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Ssl on;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
}
location @gitlab {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off;
proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Ssl on;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
}
location ~ ^/(assets)/ {
root /opt/gitlab/embedded/service/gitlab-rails/public;
gzip_static on;
# to serve pre-gzipped version expires max;
add_header Cache-Control public;
}
location ~ / {
root /opt/gitlab/embedded/service/gitlab-rails/public;
try_files $uri $uri/index.html $uri.html @gitlab;
}
error_page 502 /502.html;

for GitLab 8.0.x/8.1.x (with gitlab-git-http-server):

location /uploads/ {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off; proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Ssl on;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
}
location @gitlab {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off;
proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Ssl on;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
}
location ~ ^/[\w\.-]+/[\w\.-]+/(info/refs|git-upload-pack|git-receive-pack)$ {
error_page 418 = @gitlab-git-http-server;
return 418;
}
location ~ ^/[\w\.-]+/[\w\.-]+/repository/archive {
error_page 418 = @gitlab-git-http-server;
return 418;
}
location ~ ^/api/v3/projects/.*/repository/archive { error_page 418 = @gitlab-git-http-server;
return 418;
}
location @gitlab-git-http-server {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off;
proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_buffering off;
# The following settings only work with NGINX 1.7.11 or newer
# # # Pass chunked request bodies to gitlab-git-http-server as-is
# proxy_request_buffering off;
# proxy_http_version 1.1;
proxy_set_header Host $http_host; proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Ssl on;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_pass http://gitlab-git-http-server; } location ~ ^/(assets)/ { root
/opt/gitlab/embedded/service/gitlab-rails/public;
gzip_static on;
expires max;
add_header Cache-Control public;
}
location ~ / { root /opt/gitlab/embedded/service/gitlab-rails/public;
try_files $uri $uri/index.html $uri.html @gitlab;
}
error_page 502 /502.html;

for GitLab 8.2.x (with gitlab-workhorse):

location /uploads/ {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off;
proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
}
location @gitlab {
## If you use HTTPS make sure you disable gzip compression
## to be safe against BREACH attack.
# gzip off;
proxy_read_timeout 300;
proxy_connect_timeout 300;
proxy_redirect off;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Frame-Options SAMEORIGIN;
proxy_pass http://localhost:8080;
} location ~ ^/[\w\.-]+/[\w\.-]+/gitlab-lfs/objects {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
}
location ~ ^/[\w\.-]+/[\w\.-]+/(info/refs|git-upload-pack|git-receive-pack)$ {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
}
location ~ ^/[\w\.-]+/[\w\.-]+/repository/archive {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
} location ~ ^/api/v3/projects/.*/repository/archive {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
}
location ~ ^/[\w\.-]+/[\w\.-]+/builds/download {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
}
location ~ /ci/api/v1/builds/[0-9]+/artifacts {
client_max_body_size 0;
error_page 418 = @gitlab-workhorse;
return 418;
}
nginx-settings
